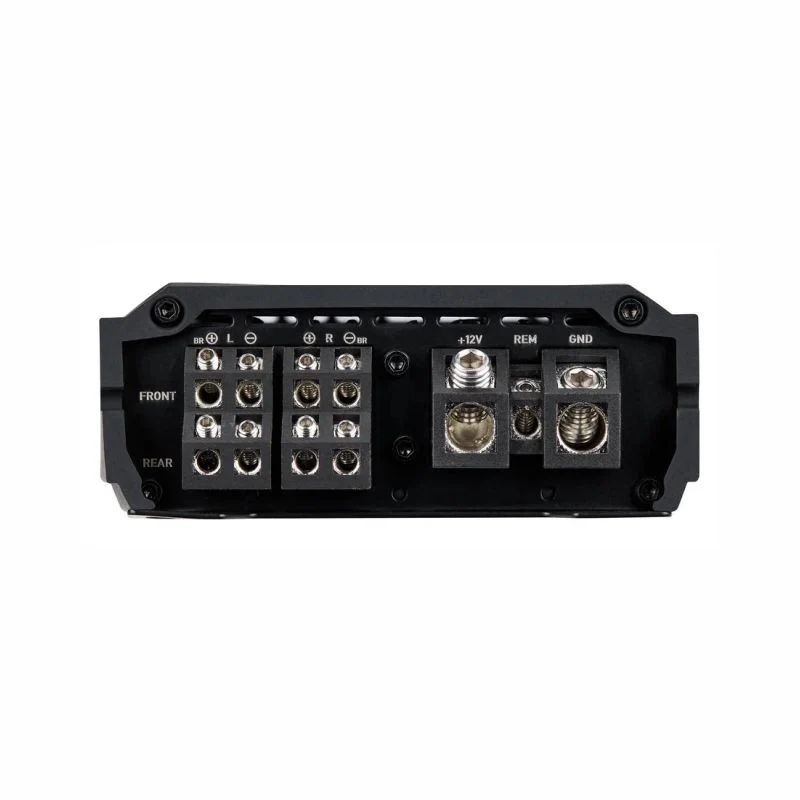

MACHETE MLA-60.4 | 60 Watt 4-channel amplifier
Manual MACHETE MLA-60.4
Specifications
| Model | MLA-60.4 |
| Class | D |
| Number of the channels | 4 |
| Frequency response | 20-20000 Hz |
| 2 Ohm RMS Power (14.4 V) | 90 W x 4 |
| 4 Ohm RMS Power (14.4 V) | 60 W x 4 |
| 4 Ohm RMS Power (Bridge) | 180 W x 1 |
| Minimum permissible load on the channel | 2 Ohm |
| Minimum permissible load in a bridge connection | 4 Ohm |
| Low pass filter | 40-400 Hz |
| High pass filter | 40-400 Hz |
| LPF and HPF simultaneous operation | True |
| Crossover | 12 dB/Oct |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ≥ 85 dB |
| Size (WxLxH) | 5.2 x 4.3 x 1.7 inch |
$74.95
MACHETE MLA-60.4 | 60 Watt 4-channel amplifier—
$74.95
Description
Manual MACHETE MLA-60.4
Specifications
| Model | MLA-60.4 |
| Class | D |
| Number of the channels | 4 |
| Frequency response | 20-20000 Hz |
| 2 Ohm RMS Power (14.4 V) | 90 W x 4 |
| 4 Ohm RMS Power (14.4 V) | 60 W x 4 |
| 4 Ohm RMS Power (Bridge) | 180 W x 1 |
| Minimum permissible load on the channel | 2 Ohm |
| Minimum permissible load in a bridge connection | 4 Ohm |
| Low pass filter | 40-400 Hz |
| High pass filter | 40-400 Hz |
| LPF and HPF simultaneous operation | True |
| Crossover | 12 dB/Oct |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ≥ 85 dB |
| Size (WxLxH) | 5.2 x 4.3 x 1.7 inch |
