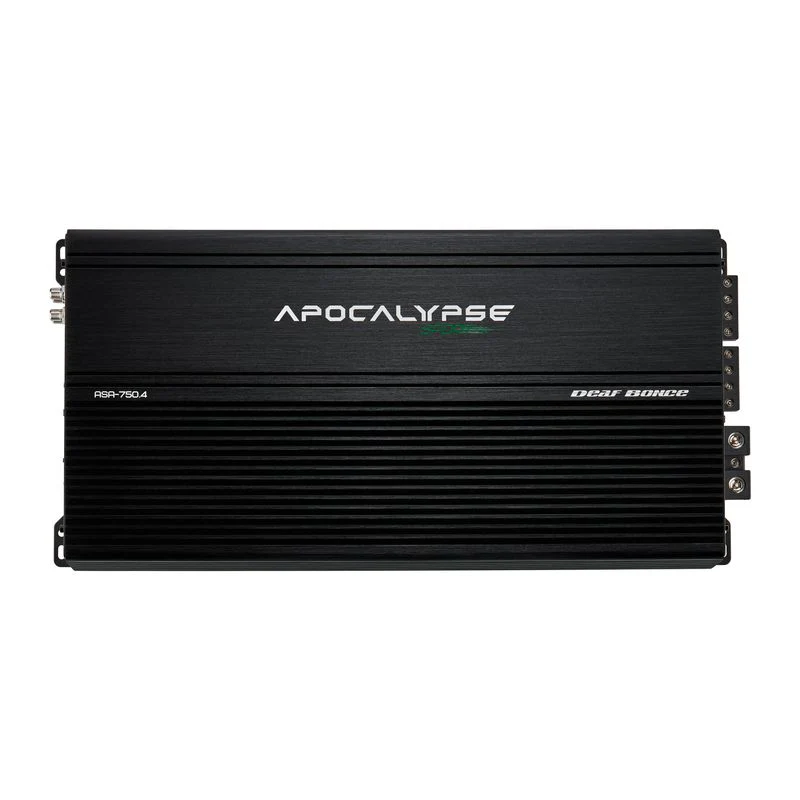

Apocalypse ASA-750.4 | 750 Watt 4-channel amplifier
Manual ASA-750.4
Specifications
| Model | ASA-750.4 |
| Class | D |
| Number of the channels | 4 |
| Frequency response | 10-20000 Hz |
| 1 Ohm RMS Power (14.4 V) | 750W x 4 |
| 2 Ohm RMS Power (14.4 V) | 490 W x 4 |
| 4 Ohm RMS Power (14.4 V) | 310 W x 4 |
| 2 Ohm RMS Power (Bridge) | 1500W x 2 |
| 4 Ohm RMS Power (Bridge) | 980 W x 2 |
| Minimum permissible load on the channel | 1 Ohm |
| Minimum permissible load in a bridge connection | 2 Ohm |
| Low pass filter | 50-1200 / 500-12000 Hz |
| High pass filter | 10-1200 / 100-12000 Hz |
| Crossover | 12 dB/Oct |
| Input terminal | 0 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 16V |
| Signal-to-noise ratio | ≥ 91 dB |
| Size (LxWxH) | 18.9 x 9.45 x 2.5 inch |
$539.90
Apocalypse ASA-750.4 | 750 Watt 4-channel amplifier—
$539.90
Description
Manual ASA-750.4
Specifications
| Model | ASA-750.4 |
| Class | D |
| Number of the channels | 4 |
| Frequency response | 10-20000 Hz |
| 1 Ohm RMS Power (14.4 V) | 750W x 4 |
| 2 Ohm RMS Power (14.4 V) | 490 W x 4 |
| 4 Ohm RMS Power (14.4 V) | 310 W x 4 |
| 2 Ohm RMS Power (Bridge) | 1500W x 2 |
| 4 Ohm RMS Power (Bridge) | 980 W x 2 |
| Minimum permissible load on the channel | 1 Ohm |
| Minimum permissible load in a bridge connection | 2 Ohm |
| Low pass filter | 50-1200 / 500-12000 Hz |
| High pass filter | 10-1200 / 100-12000 Hz |
| Crossover | 12 dB/Oct |
| Input terminal | 0 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 16V |
| Signal-to-noise ratio | ≥ 91 dB |
| Size (LxWxH) | 18.9 x 9.45 x 2.5 inch |
