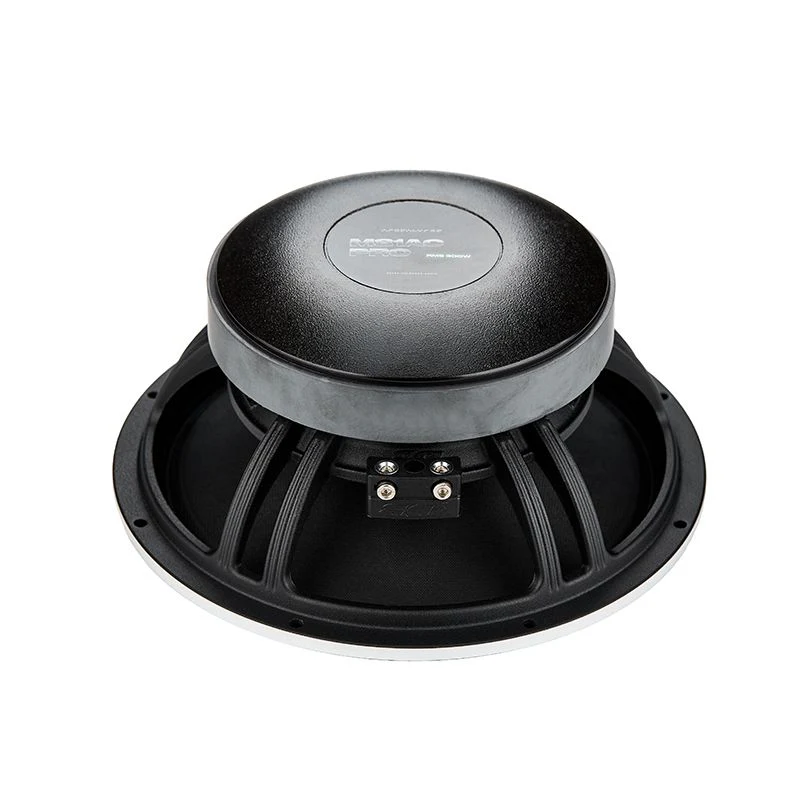

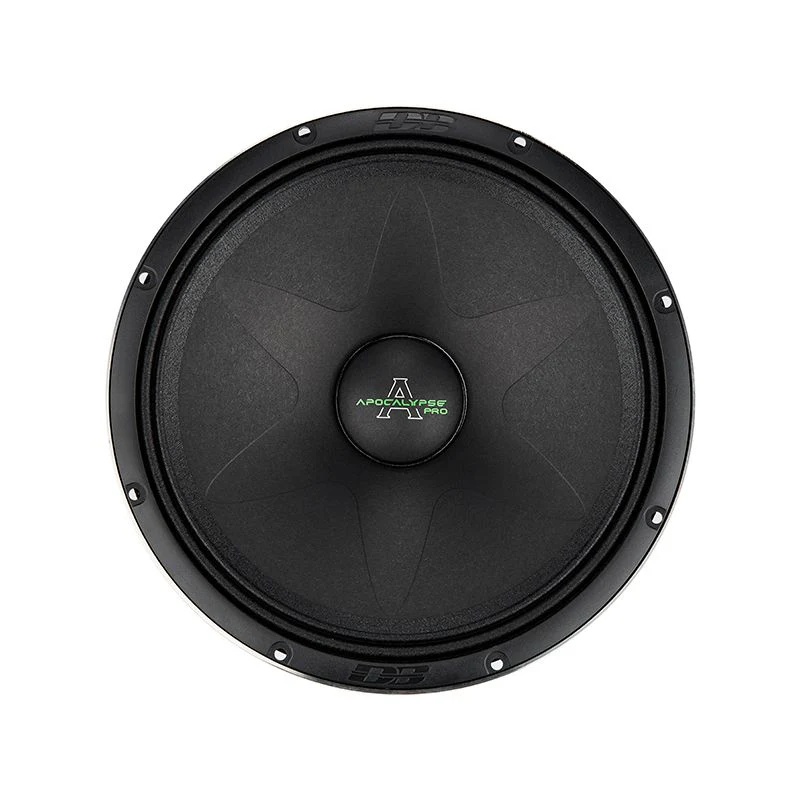

Apocalypse AP-M81AC PRO | Mid-Range Speakers (Pair)

Manual M81AC PRO

M81AC PRO Midrange Speaker Specifications

• Type: Midrange

• Size: 8"

• Frequency Response: 150 – 10,000 Hz

• Package Quantity: Pair

Power Handling:

• RMS Power: 300 W

• Max Power: 600 W

Build & Materials:

• Voice Coil Size: 1.75"

• Voice Coil Wire: Copper-Clad Aluminum (CCAW)

• Cone Material: Pressed Paper

• Magnet Type: Ferrite

• Frame: Aluminum

Performance Characteristics:

• Impedance: 4 Ohm

• Sensitivity (SPL): 98.1 dB

• Resonance Frequency (Fs): 155 Hz

• Total Q Factor (Qts): 0.41

• BL (Magnetic Force): 9.70

• Vas (Equivalent Air Volume): 5.30 L

Mounting Dimensions:

• Mounting Depth: 89.0 mm

• Cut-Out Diameter: 193.0 mm

Shipping Weight:

• Gross Weight: 7.80 kg
